Chevron Belt KFN-32

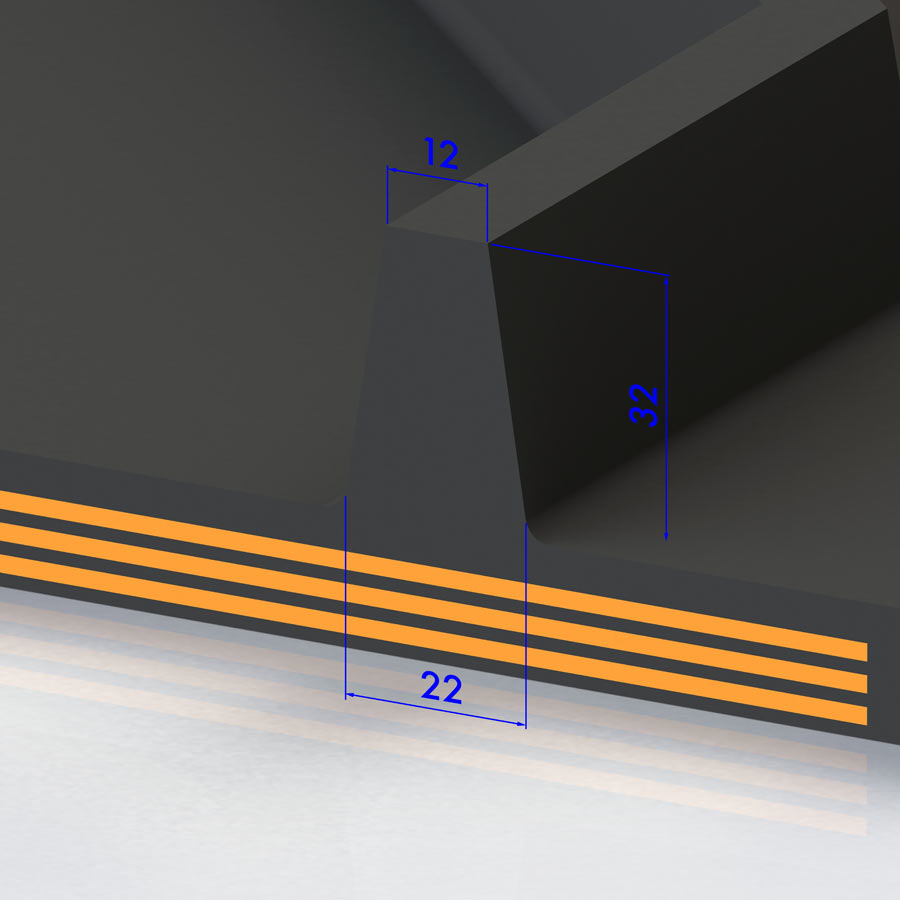

| CHEVRON | PROFILE HEIGTH (mm) | PROFILE WIDTH: B (mm) | BELT WIDTH: A (mm) | LENGTH PROFILE CENTRAL: C (mm) |
APENDIX LENGTH: D (mm) |
|---|---|---|---|---|---|
| KFN-32/380 | 32 | 380 | 400 ÷ 650 | 0 | 0 |
| KFN-32/460 | 32 | 460 | 500 ÷ 800 | 40 | 0 |
| KFN-32/580 | 32 | 580 | 650 ÷ 800 | 160 | 90 |
| KFN-32/860 | 32 | 860 | 1000 | 440 | 90 |

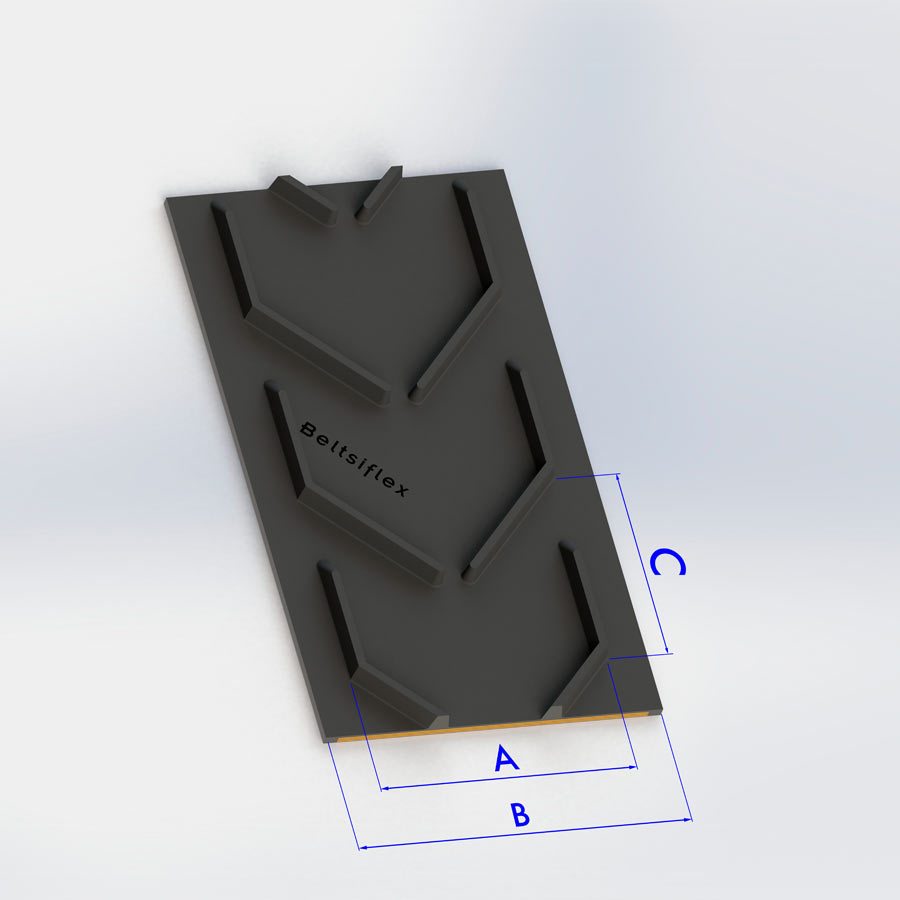

KFN-32-380

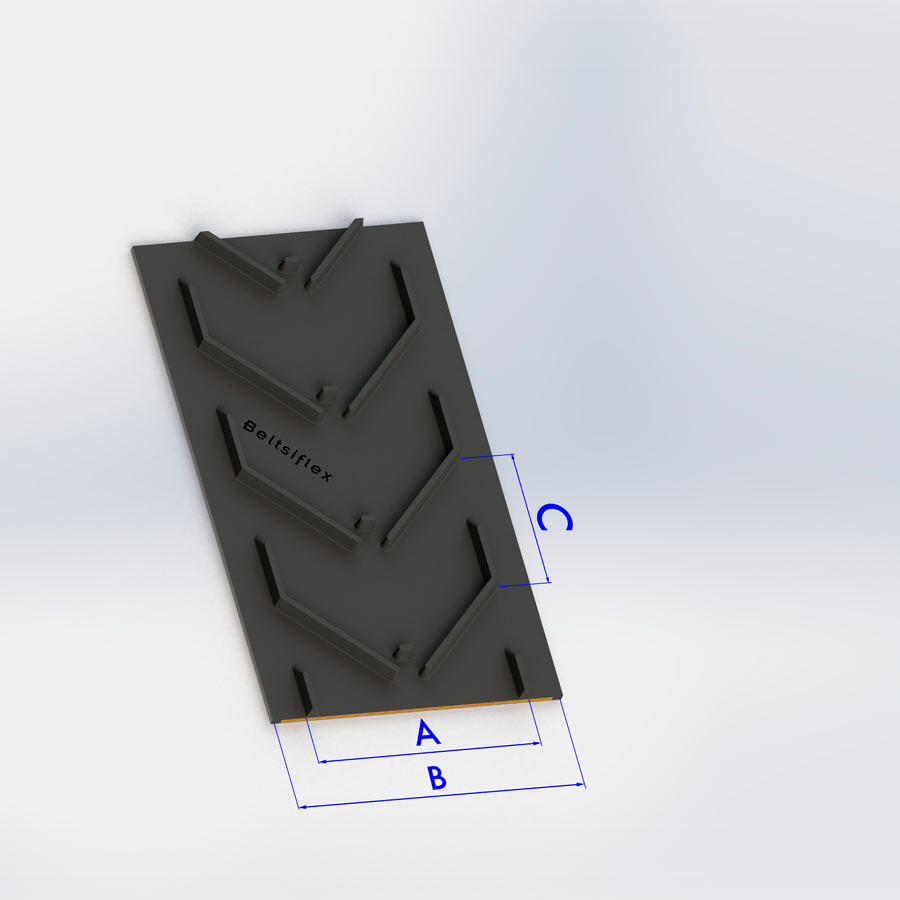

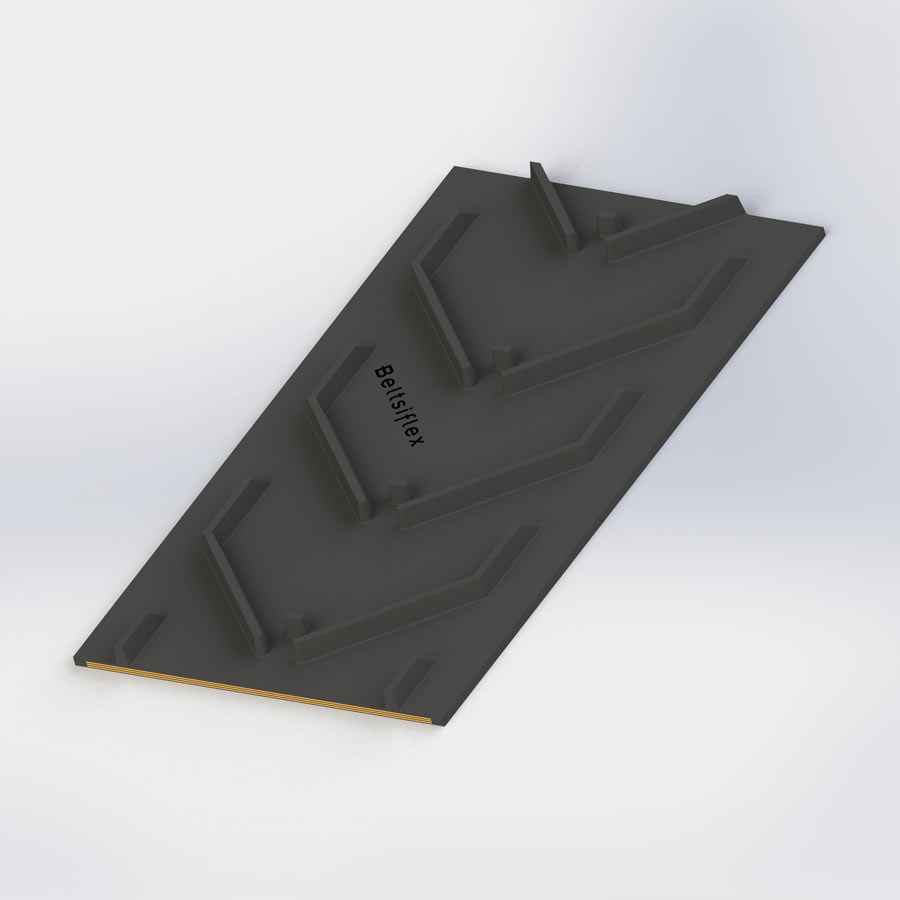

KFN-32-460

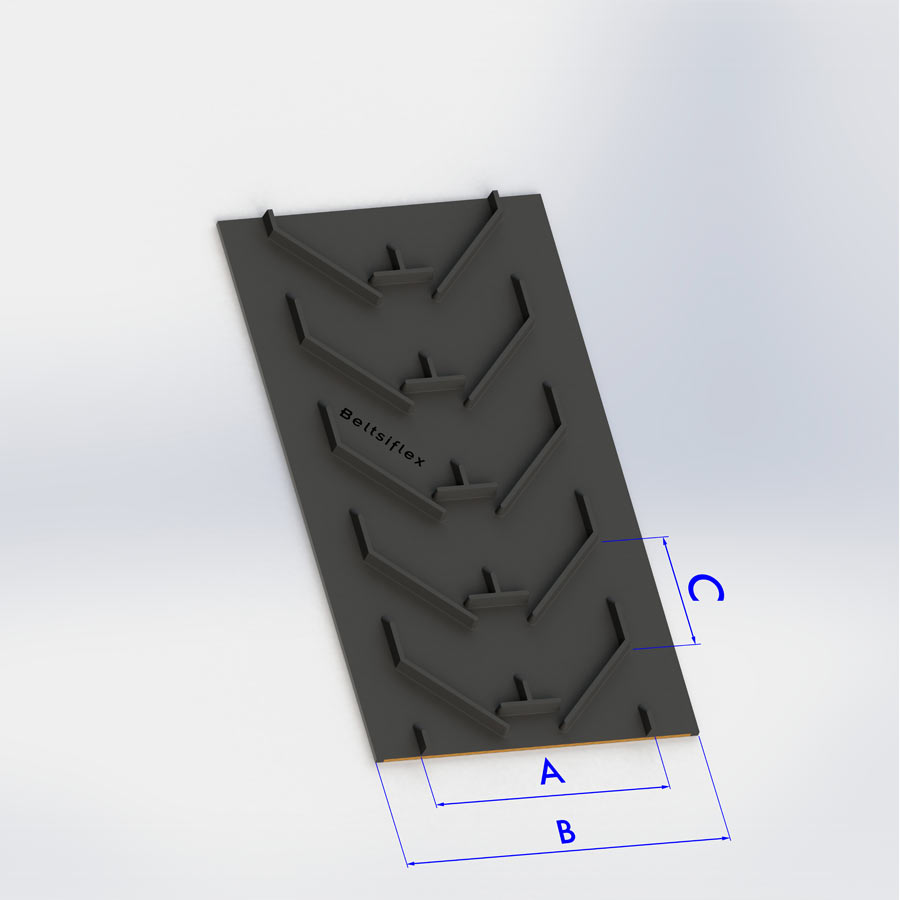

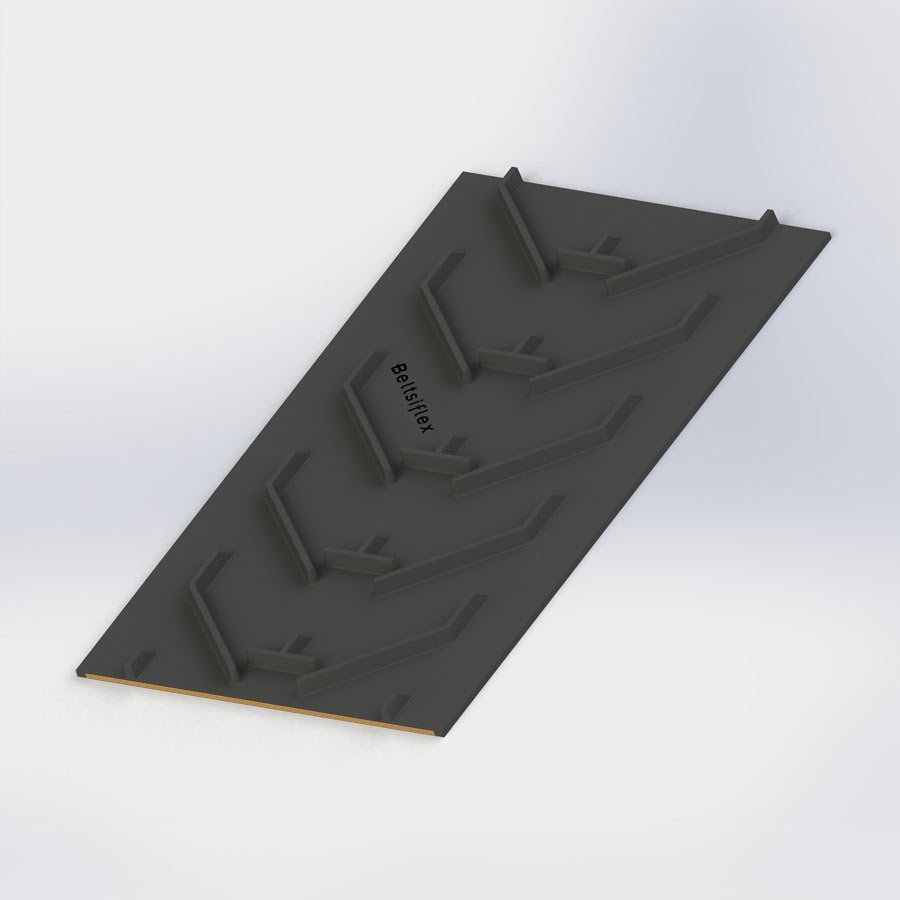

KFN-32-580

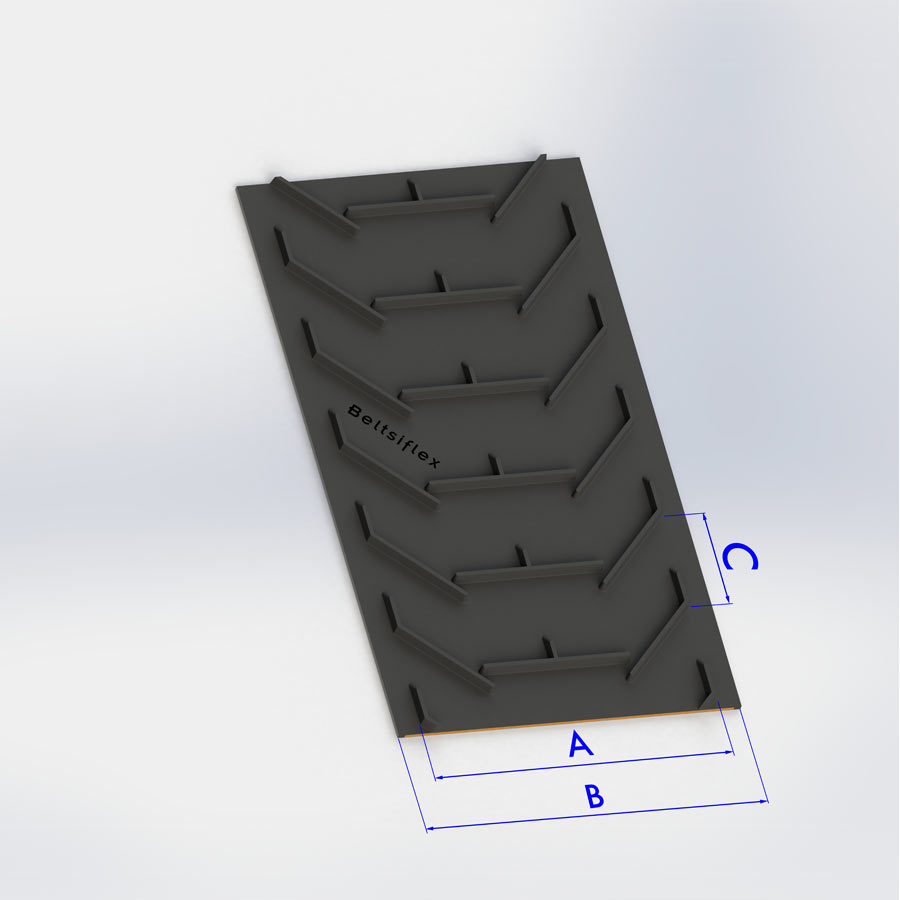

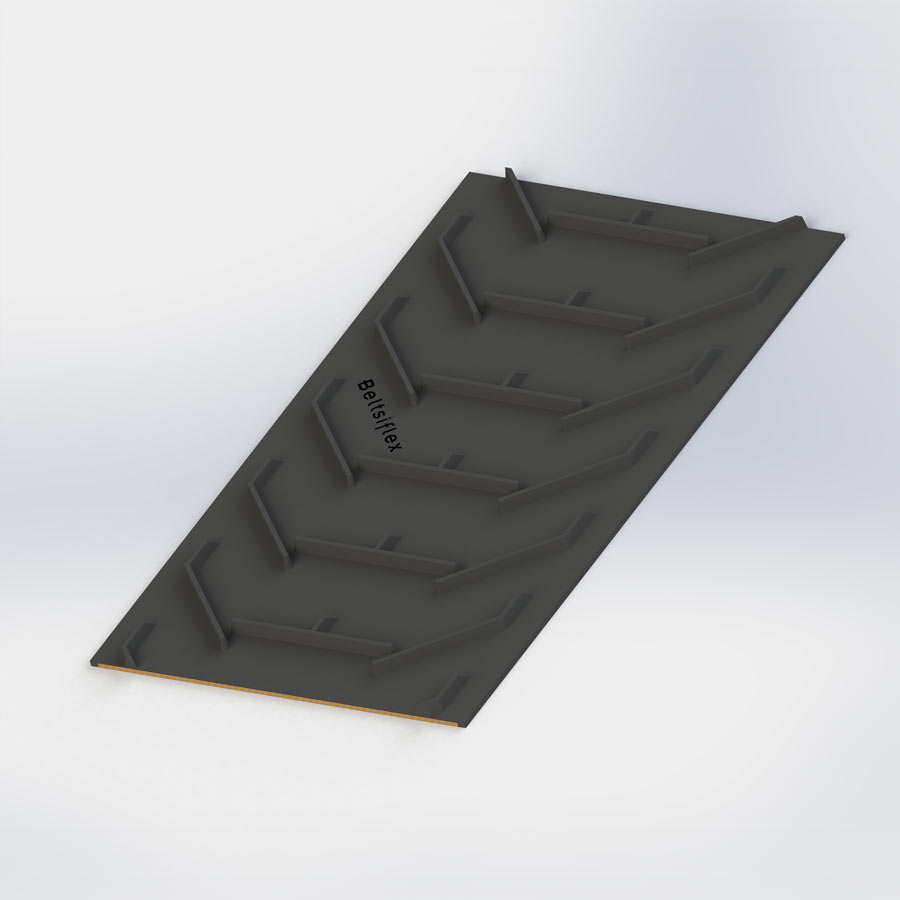

KFN-32-860
